Pump Control Solutions
Efficient and Reliable Motor Control for Water, Wastewater, and Industrial Pumping Systems
VFDs offer intelligent, variable-speed control for all types of pumps—centrifugal, positive displacement, and submersible—enabling precise flow and pressure regulation while reducing energy usage and extending equipment life. They are widely used in water supply, wastewater treatment, irrigation, and chemical processing.
Pump Control Solutions

 Pump Control Solutions with VFDs

Efficient and Reliable Motor Control for Water, Wastewater, and Industrial Pumping Systems

VFDs offer intelligent, variable-speed control for all types of pumps—centrifugal, positive displacement, and submersible—enabling precise flow and pressure regulation while reducing energy usage and extending equipment life. They are widely used in water supply, wastewater treatment, irrigation, and chemical processing.




Key Features and Technical Specifications

· Automatic Flow Regulation: Adjusts pump speed based on system demand

· Soft Start and Stop: Reduces water hammer and mechanical stress

· Built-in Sleep/Wake Logic: Stops pump during low demand to save energy

· Multi-Pump Control: Supports lead-lag alternation and duty rotation

· Protection Functions: Dry run, overload, cavitation, and anti-jamming protection

· Real-Time Monitoring: Flow rate, pressure, current, and power consumption data

· IP Rated Options: Available in IP20 to IP66 for different environments




System Configuration Recommendations

Component

Description

Application Notes

Pump-Specific VFD

With preloaded pump control macros

Minimizes commissioning time

Pressure Transducers

4-20mA feedback to control PID loop

Ensures consistent pressure in the system

Output Reactors

Reduce harmonic distortion and protect windings

Useful in long cable installations

External Bypass Switch

Maintains operation in case of drive fault

Ensures reliability for critical systems

Solar Pump Controller (Optional)

For solar-powered pump applications

Maximizes pump output under variable sunlight




Typical Pumping Applications

· Municipal water supply and booster systems

· Irrigation in agriculture and greenhouses

· Sewage and wastewater lift stations

· Industrial process cooling water loops

· Chemical and slurry pump control

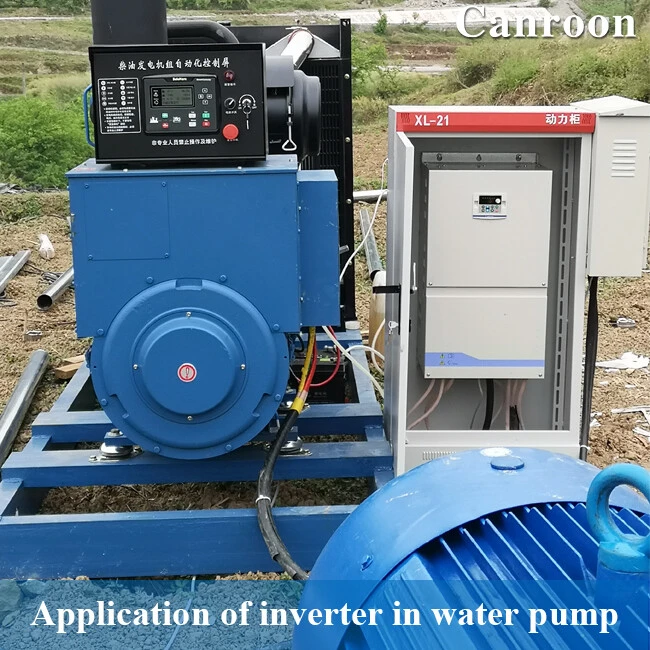

Application Case Study: Rural Water Supply Station

Challenge: A remote pumping station operated at full speed regardless of demand, wasting energy and requiring frequent maintenance.

Solution: A 45kW VFD with pressure feedback sensor was installed, adjusting pump speed in real time.

Results:

· Reduced energy consumption by 42%

· Cut pump maintenance frequency in half

· Improved water pressure stability across all endpoints

· Enabled remote monitoring via GSM module




Benefits of Using VFDs for Pumps

· Energy Efficiency: Eliminate over-pumping and reduce electricity bills

· Process Stability: Maintain consistent pressure or flow under variable demand

· Longer Equipment Life: Gentle start/stop protects pipes, valves, and bearings

· Flexible Automation: Supports multiple control modes and sensors

· Smart Alarms and Protections: Prevents pump damage from dry run or clogging
