Choosing the right pwht equipment is important for each project. You need to pick pwht equipment that fits your needs. Always follow safety rules when you choose equipment. Picking the wrong equipment can waste time and money. Be careful when you make your choice. Look at every detail and try not to make mistakes. Your project needs equipment that works for every need.

Key Takeaways

• Pick PWHT equipment that matches your material type and thickness. This helps stop cracks and weak welds from happening. - Always follow weld and design codes to keep things safe and high quality. - Think about where you will use the equipment, like the weather and place. - Digital PWHT systems help you control temperature better. They also save energy and let you watch the process as it happens. - Write down details about your heat treatment process. This shows your work is good and helps you do better next time.

Project Requirements

Material and Thickness

First, look at what material you have and how thick it is before picking pwht equipment. Different materials act differently when you do post-weld heat treatment. Carbon steel, low alloy steel, and stainless steel each need special care. Thicker parts need more time to soak and need careful heating and cooling. If you heat too fast, you might get cracks or stress in the metal. You should keep the holding temperature under the lower critical temperature. This helps stop changes in the metal’s structure.

Tip: Always find out if the material had heat treatment before. If it did, you might need to change your process.

Think about how much alloy and carbon the material has. More carbon or alloy means you often need post-weld heat treatment to lower stress. Thick-walled steel needs longer soak times. For every extra inch of thickness, add about 15 minutes to the soak time. Cooling slowly helps stop cracks and brittle spots.

• Heat slowly to stop uneven growth and stress.

• Use thermocouples to watch the heat, soak, and cool steps.

• Support the part well because it gets weaker when hot.

• Pick the right temperature for post-weld heat treatment. Most steels need between 150°C and 600°C.

These rules are used in oil and gas welding and aerospace welding. Both jobs have strict rules for material and thickness.

Weld and Design Codes

You must follow weld and design codes when picking post-weld heat treatment equipment. Codes like ASME Section VIII and PCC-2 say when you must use post-weld heat treatment. These codes look at the material, how hard it is, and how it will be used. They also set rules for the size, shape, and fit of welded parts.

Note: Sometimes, codes like NACE MR0175 and ISO do not ask for post-weld heat treatment unless the customer wants it. If you add post-weld heat treatment after a contract, you might pay more.

Design engineers help match the equipment to the code and project needs. Codes help you avoid problems like bending, cracks, and hard inspections. Some codes let you use other fixes, like composite repairs, to stay safe without post-weld heat treatment.

• Always check for new code updates.

• Make sure your equipment meets the rules.

• Write down every step to show you followed the code.

Environmental Conditions

You must think about where you will use the pwht equipment. Temperature, humidity, and wind can change how post-weld heat treatment works. If you work outside, you may need extra covers or weather shields. High humidity can make welded parts rusty. Wind can cool parts too fast and cause uneven stress relief.

Tip: Plan to support and protect parts during heating. Hot parts get weaker, so they need good support.

Think about where you will use the equipment. Some jobs need portable equipment for field work. Other jobs need big furnace systems in a factory. The choice depends on the size and shape of the welded parts and where the project is.

• Check if you need equipment that moves or stays in one place.

• Make sure your equipment can handle the weather and site.

• Use digital tools to watch the temperature and soak times.

When you think about material, thickness, codes, and environment, you make better choices for post-weld heat treatment. You keep welded parts strong and meet your project goals. You also get ready for both pre and post weld heat treatment needs.

Key Features

Temperature Control

It is important to control the temperature very carefully. If the temperature is not right, the weld can crack or get weak. Good pwht equipment lets you set the temperature and keep it steady. You should use thermocouples to check the heat in many places. This makes sure the whole part gets the same heat. Even heating and holding times help stop stress and make the weld strong.

Tip: Always watch the temperature during the job. Even small changes can change the final result.

Digital PWHT Equipment

Digital pwht equipment has many benefits over old systems. You use less energy, make fewer mistakes, and get better results. The table below shows how digital systems and old systems are different:

You also get help right away and controls that are easy to use. Digital systems help you set up heat cycles and handle data with fewer mistakes. You can even get help from far away if you need it.

Mobility and Capacity

You need to think about where you will use your pwht equipment. Field jobs need heaters and power consoles you can move. These tools let you control heat, record data, and work from far away. You can set up and take down the equipment fast. This saves time and keeps everyone safe. In factories, you use big furnaces that stay in one place for large jobs.

Some industries, like aerospace, need mobile systems that heat up to 800°C. These systems help you fix things on-site and do not need to move heavy parts. Mobile equipment follows strict safety and quality rules, like ISO9001 and CE. Companies such as Canroon have solutions for both field and shop work. You get more choices, safety, and strong results.

PWHT Equipment Types

Furnace Systems

Furnace systems are used for big post-weld heat treatment jobs. They work best in factories with many welded parts. These systems use resistance heating to warm large areas. You can set the temperature at different spots. This helps you control the heat for each part. Furnace systems last a long time and do not break often. You can treat many joints at once, which saves time on big projects.

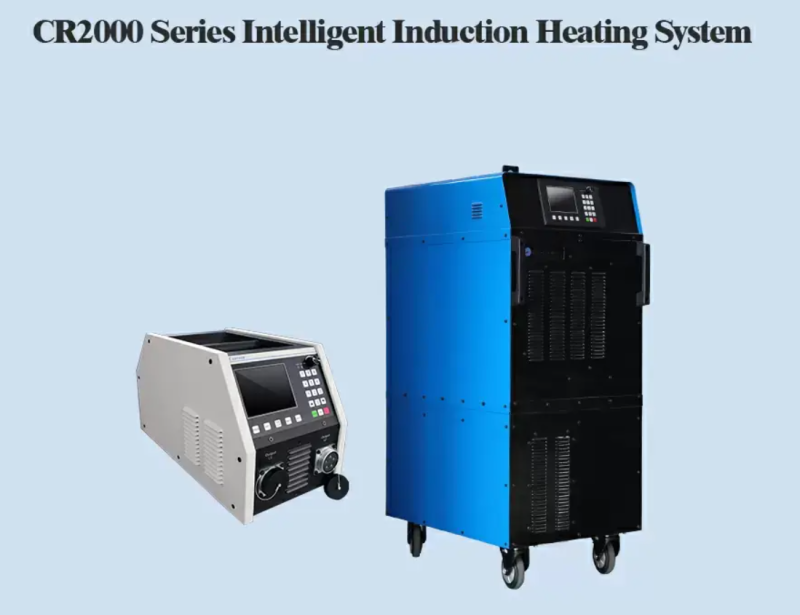

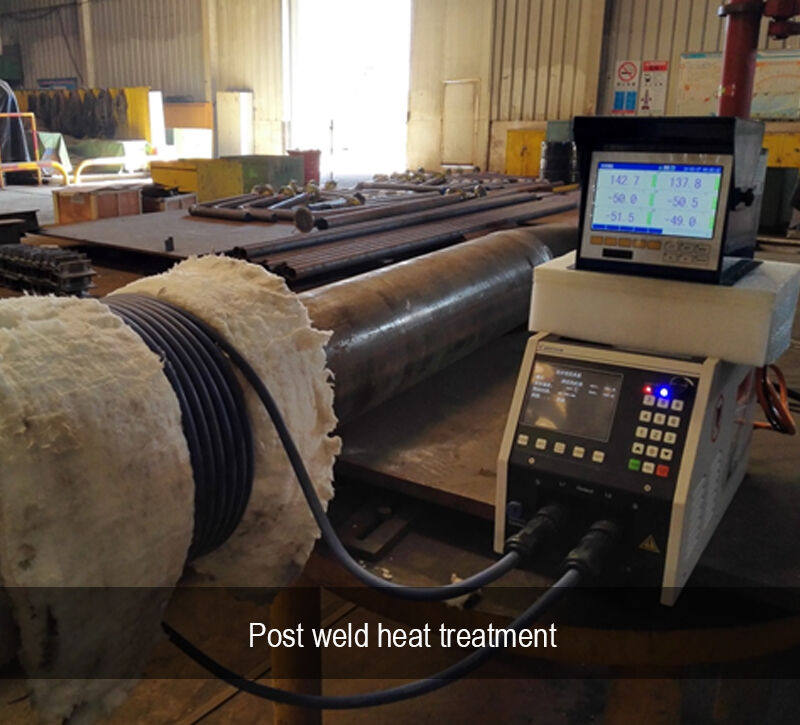

Induction Heating

Induction heating is fast and gives exact post-weld heat treatment. You use it for field jobs or small, tricky welded parts. Induction coils and finger ceramic elements help spread heat evenly. You can check the temperature with sensors and change the power quickly. This method works well for parts with odd shapes. Induction heating uses less energy and makes less waste heat. The process is cleaner and quieter.

Tip: Induction heating is great for tricky shapes. Ceramic elements help hold the part and keep heat steady.

Electrical Resistance

Electrical resistance heaters are used in many industries. You use flexible insulated preheaters, rope heaters, and ceramic pad heating elements for pipes, vessels, and other jobs. These heaters work for both preheating and post-weld heat treatment. You see them in oil and gas, power, and chemical projects. Electrical resistance heaters give good heat control and fit many shapes and sizes.

• Flexible insulated preheaters: Good for pipes and vessels.

• Rope heaters: Best for pipe welds.

• Ceramic pad heating elements: Used for pipe welds and fabrications.

Gas and Infrared Burners

Gas and infrared burners help with post-weld heat treatment in special cases. You use high velocity gas burners for vessels and spheres. Surface combustion units work for metal parts and spinning equipment. Infrared burners heat big welded parts fast and give good thermal control. You see these burners in food, chemical, metals, and car industries. They help dry, cure, and treat welded parts with less energy.

• Gas burners: Used for firing inside and drying linings.

• Infrared burners: Used for preheating metal parts and spinning pieces.

When you pick your equipment, think about your project size, the shape of your welded parts, and how tricky the workpiece is. Induction coils and finger ceramic elements help heat tricky shapes evenly. Using the right post-weld heat treatment equipment makes your welded parts stronger.

Post-Weld Heat Treatment Standards

Safety and Compliance

You must follow strict rules when you choose post-weld heat treatment equipment. Many industries use standards to make sure every weld is safe and strong. These standards help you control temperature, soak times, and heating rates. You see guidelines from ASME Boiler and Pressure Vessel Code, API 650, and AWS D1.1 in most factories. British Standards like BS5500 and BS2633 also give advice on heating and cooling. These rules help you avoid problems like cracks and weak spots. You keep workers safe and protect the environment.

Note: Always check the latest standards before you start post-weld heat treatment. New rules can change how you do stress relief and heat cycles.

You need equipment with safety features. Look for alarms, emergency shut-offs, and temperature controls. These features help you stop accidents and keep the process under control. You must train your team to use the equipment and follow every safety step.

Common Standards for Post-Weld Heat Treatment:

• ASME Boiler and Pressure Vessel Code

• API 650

• AWS D1.1

• BS5500 and BS2633

These standards guide you on temperature control, soak times, and stress relief methods.

Quality Assurance

You need to prove that your post-weld heat treatment meets all standards. Quality assurance starts with good planning. You must record every step, from heating to cooling. Digital records help you track temperature, soak time, and cooling rates. You can use charts and logs to show that you followed the rules.

You must keep these records for every project. Good documentation helps you pass audits and inspections. You show customers and inspectors that you did the job right. Digital systems make it easy to store and share records. You can find problems early and fix them before they get worse.

Tip: Always save your post-weld heat treatment data. Good records help you improve your process and meet future standards.

You build trust when you follow quality assurance steps. You make sure every weld gets proper stress relief and stays strong for years.

Vendor and Cost Considerations

Canroon Support

You need a vendor you can trust when picking post-weld heat treatment equipment. Canroon gives strong help before and after you buy. They help you with your project from start to end. Their service is as good as other top companies. Here is what you get:

• Help with planning and setting up your project

• Repairs and maintenance while under warranty

• Help with installing and training your team

• Spare and wearing parts, often free or much cheaper

• Quick answers to your questions and feedback

• Sharing knowledge and advice for building your factory

• Tips to help your business grow

Tip: Always ask your vendor about training, spare parts, and support. Good service helps you avoid delays and costly mistakes.

Budget and Value

You want equipment that fits your budget and gives value for years. The total cost is more than just the price you pay. Think about energy use, repairs, and how well it controls temperature. Good temperature control lowers the chance of cracks and fixes. This saves money and keeps welds strong.

Most welding costs come from labor. Things like supplies, equipment, and power cost less. You can save 15% to 25% by looking at all costs, not just the price. Keep your equipment checked and in good shape to avoid surprise costs.

• Make a checklist before you buy:

  • Does the vendor give strong support?

  • Can you get spare parts easily?

  • Is the equipment simple to use and care for?

  • Will it help you meet quality rules?

Picking the right vendor and equipment helps you finish on time and stay on budget. You get better results and have fewer problems later.

Pre and Post Weld Heat Treatment Considerations

When you plan your welding project, you must think about both pre and post weld heat treatment. These steps work together to keep your welds strong and safe. You cannot ignore either one if you want the best results.

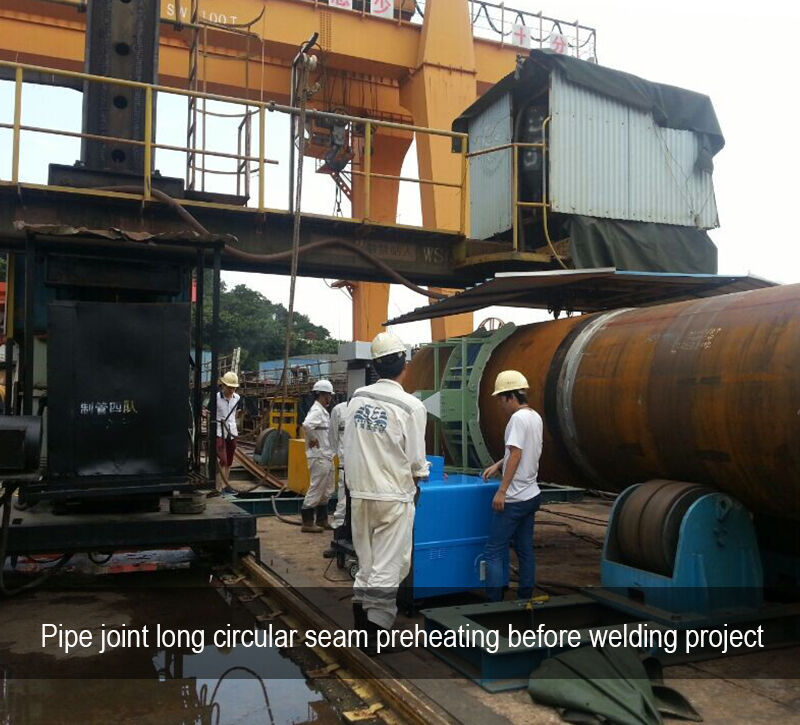

Pre-weld heat treatment helps you prepare the metal before welding. You use it to lower thermal stress, stop hydrogen cracking, and improve the weld area. You might use gas burners, electric blankets, or induction heating to reach the right temperature. You need to keep the heat even across the whole part. If you do not, you risk cracks or weak spots.

Tip: Always use thermocouples and data loggers to check your temperature during pre and post weld heat treatment. This helps you avoid mistakes and keeps your welds safe.

Pre and post weld heat treatment needs affect your equipment choice. You must pick equipment that can control temperature very closely. You need tools that can handle the right thermal cycles for stress relief and keep the metal’s structure strong. If your pre-weld heat treatment uses high temperatures or special heating methods, your post-weld heat treatment equipment must match those needs.

Here are some ways pre-weld heat treatment changes your planning for post-weld heat treatment equipment:

• You need equipment that can heat parts evenly and keep the right temperature.

• You must use systems that can monitor and record heat cycles for both steps.

• You should choose equipment that fits the thickness and type of metal you use.

• You need to plan for bake-out or degassing if your project needs it. This affects when and how you use post-weld heat treatment.

• You must follow standards like ASME, AWS, and API for both pre and post weld heat treatment.




You must look at every step in pre and post weld heat treatment. If you miss something, you might get cracks, distortion, or weak welds. Careful planning helps you meet standards and keeps your project on track.

Picking the right PWHT equipment helps you follow project rules and keeps welds strong. If you use a step-by-step plan, your welds turn out better. This is because you control heat and lower stress. You should check how fast you heat up, use tools that are checked for accuracy, and write down what you do. Canroon’s experts can help you with smart ideas and support.

Always use your checklist and talk to vendors you trust. Their help saves you time, cuts costs, and helps you get the best results for your project.

FAQ

What is the most important factor when choosing PWHT equipment?

You should always match the equipment to your material type and thickness. This helps you get the right heat treatment and avoid problems like cracks or weak welds.

Can you use the same PWHT equipment for both preheating and post-weld heat treatment?

Yes, you can use many systems for both steps. Make sure your equipment can control temperature well and record the heat cycle for each process.

How do you know if your PWHT process meets industry standards?

You need to follow codes like ASME or ISO. Always keep records of temperature, soak time, and cooling rates. Digital charts help you show proof during inspections.

What safety features should you look for in PWHT equipment?

Look for alarms, emergency shut-offs, and temperature controls. These features help you stop accidents and keep your team safe during heat treatment.
