An ac motor drive helps you change how fast and strong motors work. You can use it to save power and make machines work better. Many factories and buildings pick these systems because they cut down on electricity costs, help machines last longer, and make things run smoother.

• You pay less for energy.

• Your machines break less and work longer.

• You control things better and waste less.

Canroon gives good solutions that help you use your motors well.

Key Takeaways

• AC motor drives let you change how fast and strong a motor works. This helps save energy and makes machines work better. Using an adjustable speed drive can make your machines last longer. It does this by lowering damage when they run. Picking the right control mode for your AC motor drive is important. It helps your machine work its best for each job. Checking and caring for your AC motor drive often can stop problems. This keeps it working well for a long time. AC motor drives can be used in many ways. They work in big machines and in things you use every day. They help save energy in all these uses.

AC Motor Drive Basics

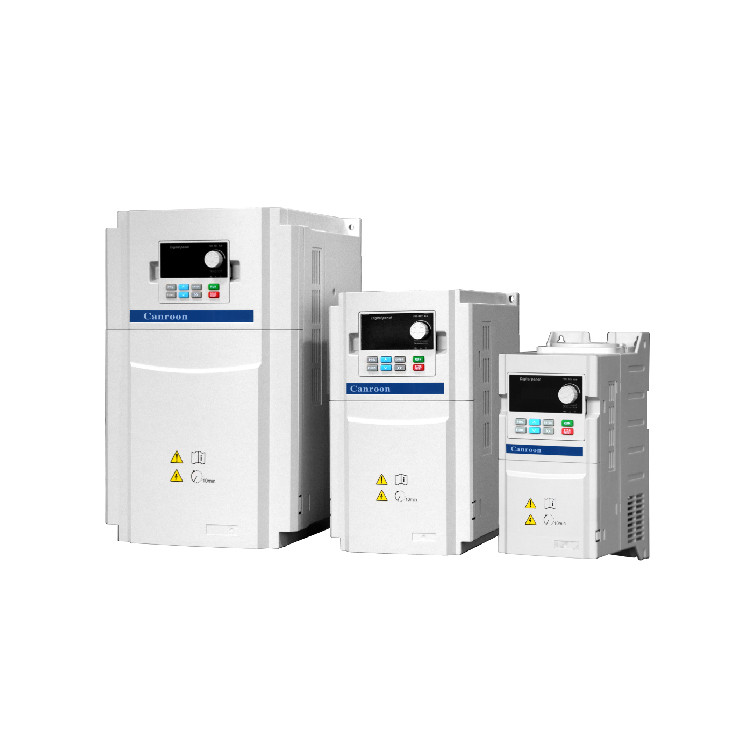

What Is an AC Motor Drive

You use an ac motor drive to control how fast and how strong an electric motor works. This device connects a controller to an AC motor. It acts like an amplifier or a frequency inverter. You can also call it an adjustable speed drive. When you use an adjustable speed drive, you change the frequency and voltage that reach the motor. This lets you set the speed and torque for many different jobs.

Canroon has deep experience with ac motor drive technology. The company helps you get the best performance from your motors.

Here is what makes an ac motor drive important:

• It converts signals from a controller into the right current and voltage for the motor.

• It adjusts the input frequency, so you can control how the motor runs.

• It gives you continuous control over speed and torque.

• You can use it with both AC and DC motors, but most often with AC motors.

Many people call these devices variable frequency drives or adjustable speed drives. You will see them in factories, buildings, and even in some home appliances.

Key Functions

An adjustable speed drive does more than just turn a motor on or off. You use it to make machines work better and last longer. Here are the main functions you get from an adjustable speed drive in both industry and daily life:

• You control the speed, torque, and direction of the motor.

• You can set constant torque for machines like hoists and conveyors.

• You can use variable torque for fans and pumps.

• You save energy by matching power use to the job.

• You protect the motor by limiting current and giving smooth starts and stops.

In factories, you often use an adjustable speed drive for conveyor belts, hoists, and pumps. These drives help you get precise control. You can make quick changes to speed, which helps your machines work better and use less energy. AC motors are strong and efficient, so they fit well with adjustable speed drives.

At home, you find adjustable speed drives in washing machines, air conditioners, and refrigerators. These drives let you change motor speed for different tasks. You get better performance and save on your electric bill. The drive also protects the motor from damage by controlling how fast it starts and stops.

Tip: When you use an adjustable speed drive, you help your machines last longer and work more efficiently.

Canroon offers solutions that fit both industrial and everyday needs. You get reliable control, energy savings, and better machine life with their ac motor drive products.

How AC Drives Work

Power Conversion Process

You can learn how an ac drive works by looking at each step. This process helps you control your motor’s speed and torque very well.

1. Input AC Power: You connect the ac drive to the main power. The power supply gives steady voltage and frequency.

2. Rectification: The drive has a rectifier circuit. It changes the AC power into direct current, or DC.

3. DC Bus: The DC voltage goes into a capacitor bank. This part stores energy and makes the voltage smooth.

4. Inverter Stage: The inverter takes the DC voltage. It makes a new AC voltage with different frequencies. This lets you change motor speed and torque.

5. Control System: The control system checks what you want and what sensors say. It changes the output frequency and voltage to fit your needs.

6. Output to the Motor: The ac drive sends the right AC voltage to the motor. You get the performance you need.

7. Feedback and Closed-Loop Control: The system keeps checking and changing things. This makes sure the motor runs smoothly.

8. Protection and Safety Features: Safety features keep your motor and ac drive safe from harm.

You get good control and safety at every step. Canroon makes ac motor drive systems that use these steps for great results.

Main Components

Every ac motor drive has a few main parts. Each part helps control your motor.

1. Rectifier: This part turns AC voltage into DC voltage.

2. DC Bus: The DC bus smooths the DC voltage and stores energy.

3. Inverter: The inverter changes DC back into AC with different frequencies.

4. Control Board: The control board checks and controls motor speed and torque.

5. Display and User Interface: You use this part to see info and make changes.

6. Protection Circuitry: This part keeps your system safe from too much voltage, not enough voltage, too much current, and heat.

Canroon makes ac motor drive solutions with smart control boards and strong protection. You get easy use and long-lasting systems.

These parts may look different depending on what you need. Low-voltage motors need bigger cables when horsepower goes up. Medium-voltage motors use smaller cables, so they are easier and cheaper to install. The insulation is also different. Medium-voltage motors use form-wound systems for better strength. Low-voltage motors use random winding to save money.

Control Modes

You can pick different control modes for your ac drive. Each mode changes how your motor works.

You control motor speed and torque by changing frequency and voltage. Here is how it works:

• When you lower frequency, you also lower voltage. This makes the magnetic field weaker.

• The ac drive keeps the V/Hz ratio the same. This helps your motor keep good torque and work well.

• At low speeds, the motor may not have enough torque because voltage drops.

• If you cut frequency in half, horsepower also drops by half, but torque stays the same.

Modern ac drives use semiconductors in the control and power parts. Some energy is lost in these parts. Losses happen because of resistance and switching. Canroon uses smart designs to lower these losses and make things work better.

Tip: You get the best results when you pick the right control mode for your job. Canroon can help you choose and set up the best ac motor drive for your needs.

Variable Frequency Drive Types

VFD vs. Other AC Motor Controllers

There are many ways to control motors. Variable frequency drive is a very common ac motor controller. It lets you change how fast the motor goes and helps save energy. Other ac motor controllers are fixed frequency drives, DC drives, and mechanical drives. Each one works best for certain jobs.

Here is a table that compares ac motor controllers:

Variable frequency drive ac motor controllers help you use less energy. You can lower your energy bill by up to 70% if you match the motor speed to the job. These ac motor controllers cost more at first, but you save money later. Fixed frequency ac motor controllers are cheaper to put in, but you cannot change the speed or save much energy. DC ac motor controllers are good for special jobs, but they use more power. Mechanical ac motor controllers are easy to use, but they waste energy.

You should choose ac motor controllers that fit your needs. If you want to save energy and change speed, pick a variable frequency drive. If you only need simple control, a fixed frequency or mechanical drive might be enough.

Here is a table with the main types of variable frequency drive ac motor controllers:

Tip: You get the best results when you pick the right ac motor controllers for your job. Canroon can help you find the best one.

Open-Loop and Closed-Loop Control

You can use open-loop or closed-loop control with ac motor controllers. Open-loop control does not use feedback. You set the speed, and the controller runs the motor at that speed. Closed-loop control uses sensors to check the motor. The controller makes changes to keep the speed or position correct.

Here is a table that shows the difference between open-loop and closed-loop ac motor controllers:

Open-loop ac motor controllers are good for easy jobs. Washing machines and heaters work well with open-loop control. Closed-loop ac motor controllers are better for jobs that need to be very exact. Robots, CNC machines, and electric vehicles need closed-loop control to work right.

Here are some jobs where closed-loop ac motor controllers work best:

Note: Closed-loop ac motor controllers give you better control and accuracy. You should use them for jobs that need exact speed or position.

Benefits and Drawbacks

Energy Savings

You can save lots of energy with an ac motor drive. Studies show you can cut energy use by about 31% for each motor. This means you pay less for power and help the earth. Factories use a lot of electricity, and motors use most of it. If all motors worked their best, global electricity use could drop by 10%. This would also cut carbon emissions by millions of tons by 2030.

• Motors use 69% of electricity in factories.

• Adding a variable frequency drive can lower power use by about 25%.

• Using these drives helps make the world greener.

When you pick an ac motor drive, you help your business and the planet.

Process Optimization

An ac motor drive gives you better control of your machines. You can set the motor speed for each job. This saves energy and keeps your process steady. Here are some ways you make your process better:

1. Change motor speed to match the load and save energy.

2. Control speed and torque for steady and accurate work.

3. Run motors only as fast as needed, so they last longer.

4. Spend less on repairs because your motors work smarter.

You also lower mechanical stress. The drive gives soft starts and stops, so your equipment lasts longer. You get fewer breakdowns and longer machine life.

• Good control over starting and stopping lowers wear.

• Soft starting slowly increases speed, protecting motors and equipment.

• Better energy use means less stress and longer life for your machines.

Maintenance and Limitations

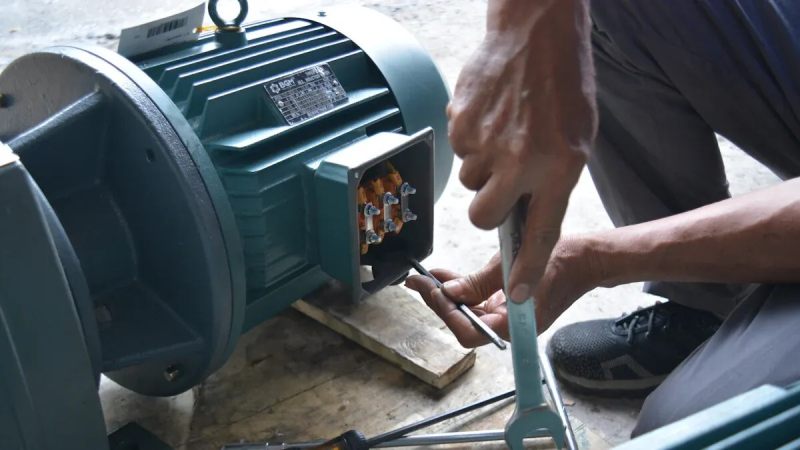

You need to check your ac motor drive often to keep it working well. Some problems are mechanical, like bad bearings or shaft issues. Electrical problems can happen if insulation gets old or the motor is overloaded. Too much vibration can hurt both mechanical and electrical parts, so you should check your system often.

• Mechanical problems: Bad bearing installation and shaft overdrive.

• Electrical problems: Old insulation and electrical overload.

• Too much vibration: Can cause damage if not checked.

Canroon helps you avoid these problems with strong protection and easy controls. You get help and advice to keep your system running well.

Tip: Regular checks and good setup help you get the most from your ac motor drive.

AC Drive Applications

Industrial Uses

AC motor drives are used in many industries. These systems help control machines and save energy. Here are some main uses in different sectors:

1. Industrial Fans and Blowers: These help move air in factories and warehouses.

2. Water Pumps and Air Compressors: They keep liquids and air moving in plants.

3. Conveyor and Material Handling Systems: These move products and materials with less work.

4. Machine Tools and Heavy-Duty Equipment: These power tools for making things and building.

5. Environmental Systems: These help clean air and control temperature.

Many companies work better with AC motor drives. For example, Nidec Drives used variable speed drives in their conveyor and lift system. Workers did not need to move things by hand anymore. This made production faster and safer for everyone. Studies show variable speed drives can save up to 60% energy when machines run at low loads. Some factories save 80% energy in pumping systems with these drives. Canroon gives solutions to help you save energy and work better.

HVAC and Buildings

AC motor drives are found in modern HVAC systems. These systems heat, cool, and move air in big buildings. Variable frequency drives let you change motor speed. You save energy, sometimes more than 50% compared to old systems. Drives help motors last longer by starting and stopping them gently. In tall buildings, you get better water pressure and air flow. Every floor stays comfortable and uses less power. Canroon’s drives help you run building systems with high efficiency.

Everyday Examples

AC motor drives are used in many home and business devices. Here are some common examples:

• Washing Machines: The motor changes speed for washing and spinning. Clothes get clean and you save water.

• Refrigerators: The motor runs the compressor. Food stays cold and you use less electricity.

• Air Conditioners: The motor controls fans and compressors. You stay cool and save energy.

• Vacuum Cleaners: The motor changes speed for better suction and less power use.

• Electric Fans: You pick the speed for comfort and save energy.

Variable frequency drives help you control these devices. You only use the power you need. This can cut energy use by up to 50% in some cases. Canroon’s solutions help your appliances work smarter and last longer.

You have learned that an ac motor drive lets you change motor speed and save energy. Choosing the right drive helps your machines work well and last longer. When you pick a drive, you should think about a few things:

• Make sure the power supply matches.

• Check how fast or slow the motor can go.

• Know how often the motor will run.

• Match the current ratings to the motor’s load.

• Plan for times when the motor works extra hard or needs to stop quickly.

• Find out what kind of load the motor will move.

• Think about where the motor will be used.

• Look at what control and communication the system needs.

Canroon can help you choose the best drive for your job so you get great results.

FAQ

What is the main job of an AC motor drive?

You use an AC motor drive to control how fast and how strong a motor works. It lets you change speed and save energy. You get better control over your machines.

Can you use AC motor drives with any motor?

You can use most AC motor drives with standard AC motors. Some motors work better with drives than others. Always check the motor’s type and ratings before you connect a drive.

How do AC motor drives help save energy?

You save energy because the drive matches the motor speed to the job. The motor does not run faster than needed. This cuts down on wasted electricity.

Do AC motor drives need a lot of maintenance?

You do not need much maintenance for AC motor drives. You should check for dust, loose wires, and overheating. Regular checks help your drive last longer.

What problems can AC motor drives prevent?

You avoid sudden starts and stops with a drive. This protects your motor from damage. You also reduce wear on belts, gears, and other machine parts.
