Before you pick a variable frequency drive for your conveyor, you need to collect all the important facts about your motor and conveyor system. This step helps you avoid expensive mistakes and makes sure your conveyor works well. The main vfd selection rules are about matching the vfd to your motor’s needs and what your conveyor does.

Motor Specs: Horsepower, Voltage, and Phase

When you start picking the right motor and vfd, you have to look at a few motor details. These facts help you choose a vfd that fits your conveyor and saves energy.

• Horsepower

• Full Load Amperage

• Voltage

• Speed Range

• Torque Requirements

• Duty Cycle

You need to make sure the vfd matches your motor’s horsepower, voltage, and phase. If you get these wrong, your conveyor might not work right. Here are some things to remember:

• The voltage ratings of the vfd and motor must be the same.

• The horsepower rating of the vfd should be as much or more than the motor.

• The phase setup of both the vfd and the motor must match.

• You must check the supply voltage to make sure it works.

Tip: Always look at the motor nameplate for these facts before you pick a vfd.

Load Type and Application Needs

The kind of load your conveyor moves will change how you pick a vfd. Some conveyor jobs need special vfd features, especially if you want to save energy or move tricky loads. The table below shows how different conveyor jobs may need special vfd features:

You should also think about what your conveyor needs to do. Not every conveyor needs a vfd. The table below explains when a vfd is needed:

If your conveyor needs to change speed, move heavy or changing loads, or save energy, a vfd is a good idea. Picking the right conveyor belt and belt for the job also matters for how your vfd will work.

Full Load Amperage and Power Rating

Making sure the vfd’s full load amperage matches your motor’s needs is very important. If you pick the wrong size vfd, you might have problems like the system stopping, getting too hot, or even breaking. Here is what you need to know:

• The vfd’s output current must match the motor’s nameplate full load amperage (FLA) for it to work well.

• If the vfd is the wrong size, it can cause the system to stop a lot and get too hot, which can break the system.

• It is more important to match the current ratings than just the horsepower, because motors with the same horsepower can have different FLA numbers.

Note: Always use the motor’s FLA, not just horsepower, when you pick a vfd. This step helps you save energy and makes your system last longer.

By following these main vfd selection rules, you can make sure your conveyor system works safely, saves energy, and has fewer problems. This way, you get the most out of your money and your system.

Matching the VFD for Conveyor Applications

Sizing and Voltage Compatibility

You have to make sure your vfd matches your conveyor motor’s voltage and phase. This helps your conveyor run safely and without problems. First, look at the motor’s nameplate to find the voltage and phase. The vfd output must be the same as these numbers. If you use the wrong voltage or phase, the motor might not start or could break.

When you size a vfd, follow these steps:

1. Pick the vfd by looking at the current (full load amperage) first, not just horsepower. Always use the motor’s FLA to choose the right vfd.

2. Choose the duty class that fits your conveyor’s torque needs. Use VT for fans and pumps, and CT for conveyors.

3. If your conveyor works in hot places or high up, use derating. This keeps your vfd from getting too hot.

4. Pick the right way to stop the conveyor to avoid overvoltage problems. Some conveyors need special brakes to stop safely.

5. Follow wiring and safety rules based on the motor’s FLA and the vfd’s input ratings.

Tip: Always make sure the vfd’s output voltage and phase match your motor. This keeps your conveyor safe and working well.

Control Methods: Open vs Closed Loop

You can pick open-loop or closed-loop control for your vfd. Each one works best for different conveyor jobs. The table below shows how they are different:

Open-loop control is good for simple conveyors that run at the same speed. You do not need extra sensors or feedback tools. Closed-loop control uses feedback to change speed and torque. This helps you get the right speed, which is important for jobs that need to be exact.

Closed-loop control is best when you need good speed control for belt conveyors, especially when speed changes. The Estimation-Calculation-Optimization (ECO) method helps stop problems like material spilling when speeding up or slowing down. This keeps your conveyor safe and makes speed changes smooth.

Note: If your conveyor moves heavy things or needs exact speed changes, pick a vfd with closed-loop control.

Dynamic Response and Speed Control

A vfd with good dynamic response helps your conveyor work better and safer. Dynamic response means the vfd can quickly change the motor’s speed and torque when needed. This lets your conveyor change speed for different jobs.

• Dynamic response lets you control motor speed and torque well. You can make your conveyor work its best.

• You can change conveyor speed for different jobs, which saves energy and time.

• Controlling how fast the conveyor starts and stops keeps it safe. This helps your equipment last longer.

If your conveyor needs to handle changing loads or tough jobs, pick a vfd with good dynamic response. You will see smoother work and fewer problems.

Tip: Always check the vfd’s dynamic response before you buy. This helps you get the best safety and performance for your conveyor.

Installation and Environmental Considerations

Space and Mounting Options

Think about where you will put your vfd. How you mount the vfd affects how long it works. It also changes how well your conveyor runs. The table below shows how mounting choices matter:

Pick the mounting that gives your vfd good support. Good support helps your conveyor work well. It also lowers the chance of breakdowns.

Enclosure Ratings and Protection

You need to keep your vfd safe from dust and water. The right enclosure rating protects your vfd in tough places. The table below lists common enclosure types:

A good enclosure lowers the risk of vfd problems. Explosion-proof enclosures stop sparks from starting fires in risky places. Strong enclosures help your system follow safety rules and keep your conveyor running.

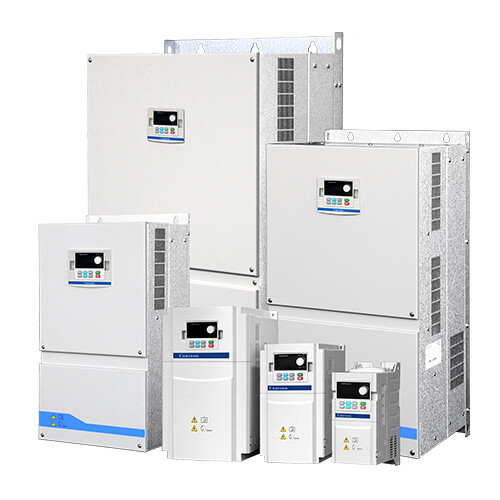

Tip: Canroon has vfd choices with tough enclosures for hard jobs. Ask for help if you need a special setup.

Temperature and Air Quality

Where you put your vfd is important. Hot, wet, or dusty places can hurt your vfd. You should:

• Make sure air moves well around the vfd.

• Use fans or heat exchangers if it gets hot.

• Pick a vfd made for high heat.

• Clean your vfd often to remove dust.

• Use monitors to find problems early.

The right enclosure and regular cleaning help your vfd last longer. Canroon has choices for places with bad air or high heat. This keeps your conveyor system working well.

Integration, Safety, and Automation

When you pick a vfd for your conveyor, think about how it will work with your automation system. It also needs to follow safety rules. A good variable frequency drive helps your conveyor run safely and smoothly. You should focus on three things: communication protocols, safety compliance, and automation compatibility.

Communication Protocols

Your vfd needs to connect with other machines in your conveyor system. Communication protocols help your vfd send and get data. These protocols let your vfd follow commands from other machines. Here are some common ones you might use:

A good communication plan helps your conveyor system grow or change later. If you choose the right protocol, you can add new machines and fix problems faster. This makes your conveyor system work better and easier to control.

Tip: Plan your communication setup early. This helps you avoid delays and makes upgrades easier later.

Safety Compliance

Safety is very important when you use a vfd in your conveyor. You must follow safety rules to keep workers and equipment safe. Look for vfds with safety features like emergency stop, overload protection, and safe torque off. These features help you stop the conveyor fast if something goes wrong.

You should check if your vfd has these safety functions. This keeps your system safe and helps you follow the law. Good safety features also lower the chance of accidents and damage.

Automation Compatibility

Your vfd should work well with your automation system. When your vfd matches your automation needs, you get better control and save energy. Here are some benefits you will see:

If your vfd fits your automation system, you can change speeds, save power, and make your conveyor last longer. You also make it easier to fix problems and add new features later.

Note: Always check if your vfd works with your automation tools. This helps your conveyor system run well for a long time.

Selecting the Best VFD: Checklist and Mistakes to Avoid

Step-by-Step Selection Checklist

You need a simple plan to pick the best vfd for your conveyor. The checklist below helps you make good choices and avoid problems. Each step helps you match your conveyor’s needs with the right variable frequency drive.

Tip: Write down your answers for each step before you pick your vfd. This makes things easier and helps you remember important details.

Common Pitfalls in Variable Frequency Drive Selection

Many people make mistakes when picking a vfd. You can stay out of trouble if you know what to look for. Here are some common mistakes and ways to avoid them:

• You only look at horsepower and forget about full load amperage.

• You do not check if the voltage and phase match.

• You pick a vfd without thinking about dust or heat in the area.

• You skip checking if you need open-loop or closed-loop control.

• You choose a vfd that does not work with your automation system.

• You forget safety features like emergency stop or overload protection.

Note: Canroon gives expert help and resources. You can ask for advice if you feel unsure about any step. Their team helps you pick the best vfd for your conveyor and supports you after you install it.

You can pick the right vfd for your conveyor by using the checklist. This helps you not make mistakes. Your conveyor will work well and not break often. If you choose a variable frequency drive that fits your needs, you save energy. You also spend less money fixing things. Canroon gives you help when you pick a vfd. If you want your system to work in the future, pick vfd options that work with new automation systems.

Tip: Use the checklist every time you pick a vfd. This makes it easier to choose and helps your conveyor last longer.

FAQ

What is a VFD and why do you need it for conveyors?

A VFD, or Variable Frequency Drive, lets you control motor speed. You use it to save energy, protect equipment, and adjust conveyor speed for different jobs.

How do you know what size VFD you need?

You check your motor’s full load amperage, voltage, and phase. You match these numbers to your VFD. Always use the motor nameplate for the most accurate information.

Can you use any VFD with any conveyor motor?

No. You must match the VFD to your motor’s voltage, phase, and amperage. Using the wrong VFD can damage your motor or conveyor.

What happens if you pick the wrong VFD?

You may see overheating, system shutdowns, or motor failure. You could also waste energy and spend more on repairs.
