How a Variable Frequency Drive Works

You can make your air system better with a variable frequency drive. This device changes how much power goes to the motor. When you need less air, the motor goes slower. If you need more air, the motor goes faster. A variable frequency drive has three main parts. There is a rectifier, some capacitors, and an inverter. The rectifier turns AC power into DC power. Capacitors help make the DC power smooth. The inverter changes the DC power back to AC power. It gives the right frequency for what you need. This helps your variable frequency compressor work well and use less energy.

Tip: Using a variable frequency compressor can help you save money on energy bills. It also makes your system quieter.

VFD as a Link Between Pressure Sensor and Motor

A variable frequency drive connects the pressure sensor and the motor. The pressure sensor checks the air pressure in your system. If the pressure goes down, the variable frequency drive tells the motor to go faster. If the pressure goes up, it slows the motor down. This quick change keeps your air pressure steady. You will see that a variable frequency compressor keeps the pressure close, within 1–2 psi. Older systems can change by 10–30 psi. This means you get steady airflow and save more energy.

• Benefits of tight pressure control:

  • Less wasted energy

  • More reliable operation

  • Longer equipment life

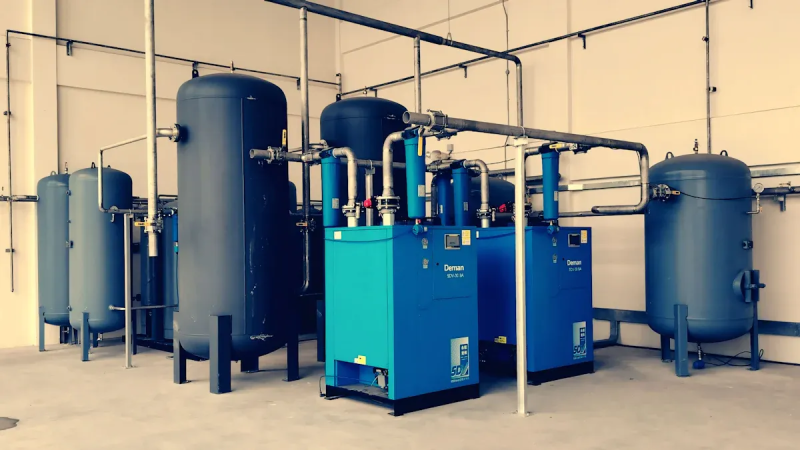

Integration in Air Compressor Systems

You can put a variable frequency drive in many air compressor systems. It works best with rotary screw compressors. Their flow rate matches the motor speed. When you add a variable frequency compressor, check the settings carefully. Wrong settings can cause motor problems or overloads. You also need to watch for mechanical stress and harmonic currents. These can hurt bearings and other parts.

A variable frequency compressor helps you save energy and money. It also makes your equipment last longer. You help the environment and save money too.

Key Benefits of VFD for Compressor Efficiency

Energy Savings and Cost Reduction

You can see big changes in your energy bills when you use a vfd for compressor. This technology helps you match the speed of your compressor to the air demand. You only use the energy you need, which means you waste less. Many factories report energy savings of 20–35%. Some even save up to 70% compared to older systems. These savings add up fast. On average, you can save over $17,000 each year. Most companies get their money back in two to five years.

• You get lower electricity costs because the vfd air compressor does not run at full speed all the time.

• You avoid paying for wasted energy during low demand periods.

• You reduce your carbon footprint by using less power.

• You help your business meet strict energy rules and save money.

Note: The true cost of a compressor is not just the price you pay up front. The electricity it uses over its life is much more. A vfd for compressor helps you cut these costs and makes your investment pay off faster.

Reduced Wear and Maintenance

A vfd for compressor gives you more than just savings on your energy bill. It also helps your compressor last longer. The soft start and stop features mean your compressor does not get hit with sudden shocks. This gentle control lowers vibration and keeps seals and parts safe. You will notice fewer breakdowns and less time spent fixing your equipment.

• Soft start feature slowly increases motor speed, reducing stress.

• Lower speeds during low demand periods mean less wear on parts.

• Fewer start-stop cycles lead to fewer failures and less maintenance.

• Built-in diagnostic systems help you spot problems early, so you can fix them before they get worse.

You spend less on repairs and keep your compressor running smoothly. The vfd air compressor helps you avoid costly surprises and keeps your system reliable.

Optimized System Performance

You get better control over your air system with a vfd for compressor. This means your compressor responds quickly to changes in air demand. The system keeps pressure steady, often within just 1–2 psi. Older compressors can swing by 10–30 psi, which can cause problems for your tools and processes.

• The vfd air compressor keeps air supply stable, so your tools work better.

• You get faster response times when demand changes.

• Lower system pressure means you save energy and improve equipment performance.

• You see fewer defects in products because the air supply stays consistent.

Variable speed control lets your compressor adjust to real-time needs. This flexibility is important in places where air demand goes up and down. The vfd for compressor helps you get the most out of your system, making sure you do not waste energy or put extra stress on your equipment.

Tip: A vfd air compressor also runs quieter. The smooth operation means less noise, which makes your workplace safer and more comfortable.

You help the environment by using less energy and cutting down on emissions. The vfd for compressor gives you strong performance, big savings, and better control over your air system.

Variable Speed Drive Applications and Limitations

Best Use Cases for Variable Speed Drive

A variable speed drive works best when your air needs change a lot. In many factories, air demand goes up and down all day. If you use machines or tools that do not need air all the time, your compressor can use a variable speed drive. This helps the compressor change its speed to match what you need. It saves energy and keeps everything working well.

Here are some places where a variable speed drive helps most:

You will save the most in places where air demand changes a lot. Some examples are food factories, car shops, and packaging plants.

Limitations for Reciprocating Compressors

A variable speed drive does not work well with every compressor. If you use a reciprocating compressor, you might have problems. These compressors do not like changing speeds as much as rotary screw types. You may see less energy savings and more wear on parts.

Here are some reasons why variable speed drives are not as good for reciprocating compressors:

• If the drive is not the right size, it can break, especially if you use over 90% capacity.

• Dust, heat, and water can hurt the drive and make it stop working early.

• If you do not set up the drive right, changing loads can cause problems.

You also need to think about the price. A variable speed drive costs more at first, but you save money on energy later. If your air needs change a lot, you can save up to half your energy. Some companies get rewards for using energy-saving compressors. Sometimes, compressors use almost half of your electricity bill.

Additional Functions and System Control

A variable speed drive can do more than just change speed. New drives, like Canroon’s CV900N series, can talk to other compressor parts. You can connect stop buttons, pressure sensors, and temperature sensors. The drive can control valves and even power touch screens.

• The drive uses MODBUS to make system setup easier.

• You get signals for problems, stops, and pressure changes.

• The drive helps you watch and control your compressor right away.

Variable speed drives also work with building systems. You can control fans, pumps, and compressors from one place. The drive keeps your compressor at the right speed for what you need. This means less air leaks and better safety.

Tip: Keep your compressor clean, cool, and dry. This helps your drive last longer and keeps your warranty good.

You get better control and can watch your system easily. Your compressor reacts fast when you need more or less air. You save energy, protect your parts, and keep your system safe.

You can boost your air compressor’s efficiency with a Variable Frequency Drive.

Andrew Fischbach says VFDs help you save energy and money by letting your compressor adjust speed. Benjamin Strong notes VFDs also protect your motor from damage and reduce stress.

VFDs work best when your air demand changes often.

• You get big savings if your demand varies more than 20%.

• VFDs help most in places with multiple shifts or machines that need air at different times.

You should check your system, review your energy bills, and compare costs. Canroon can help you find the right solution for your needs.

FAQ

How does a VFD help you save energy?

A VFD lets your compressor run only as fast as needed. You use less electricity when air demand drops. This means you pay less for power and help the environment.

Can you install a VFD on any air compressor?

You can add a VFD to most rotary screw compressors. Reciprocating compressors do not work well with VFDs. Always check your compressor type before you buy.

What maintenance does a VFD need?

You should keep the VFD clean and dry. Check for dust and heat. Inspect wires and connections often. Follow the manufacturer’s guide for best results.

Will a VFD make your compressor quieter?

Yes, a VFD helps your compressor run smoother and quieter. Lower speeds mean less noise. Your workspace becomes safer and more comfortable.
